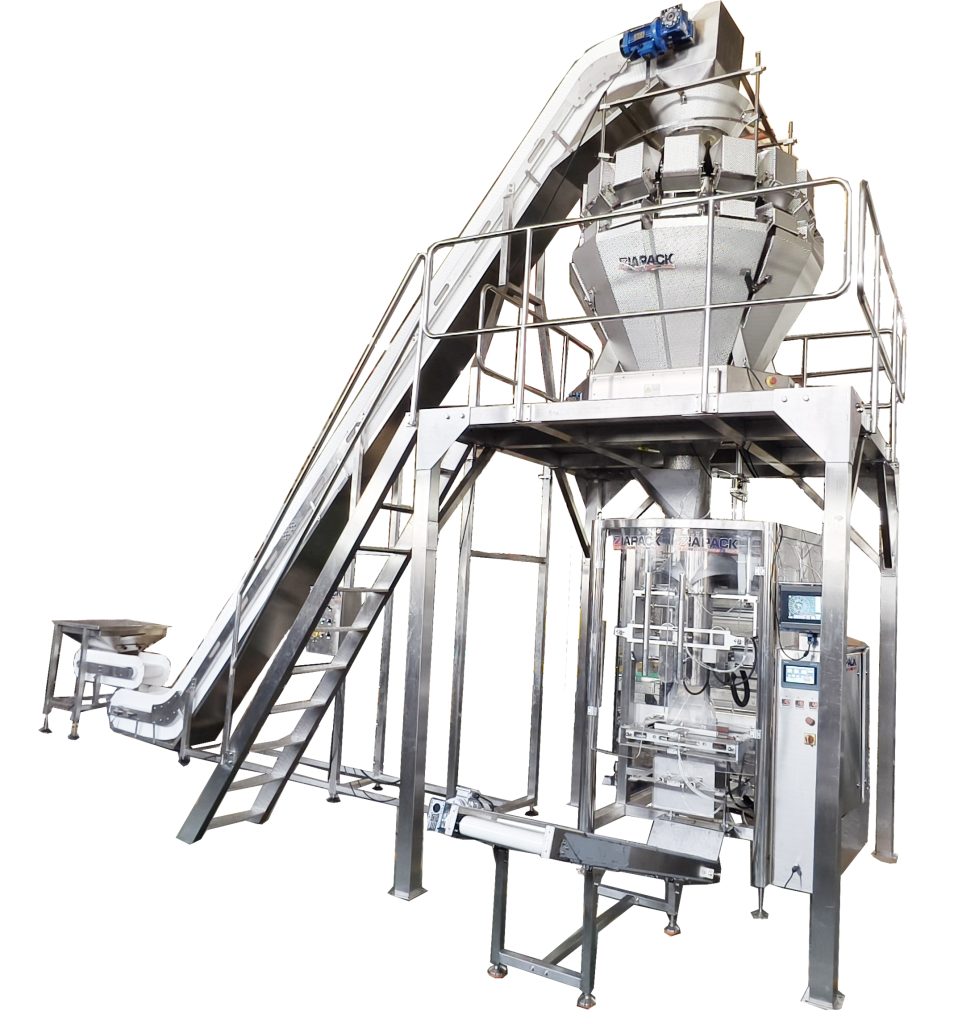

This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
Aplikasi:
It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
Fitur:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Pengantar :
Mesin ini dapat secara otomatis mewujudkan fungsi pembuatan tas, pengisian, penyegelan, pencetakan, pemotongan, dll. Mesin ini dapat secara otomatis mencapai pengisian dan penyegelan pembentuk tas.
Mesin pengemasan ini mengadopsi motor servo impor untuk umpan film dan antarmuka manusia-mesin menggunakan layar sentuh canggih. Pengoperasian lebih sederhana dan lebih nyaman. Semua komponen mengadopsi merek terkenal internasional, PLC adalah SIEMENS, motor servo adalah PANASONIC, layar sentuh adalah SIEMENS, silinder dan katup udara adalah SMC. bagian yang kontak dengan bahan kabinet kontrol rangka utama terbuat dari stainless steel304
Parameter teknik:
| Model | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| Panjang tas | 150-480mm by secondary film pulling the bag length can be longer |
| Lebar tas | 120-375mm(Side width +front width ) |
| Lebar film | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| Kekuasaan | 6KW 380V±10% 50Hz |
| Ukuran mesin | 1650*1500*1750mm |
| Berat mesin | 650kg |
